Product Description

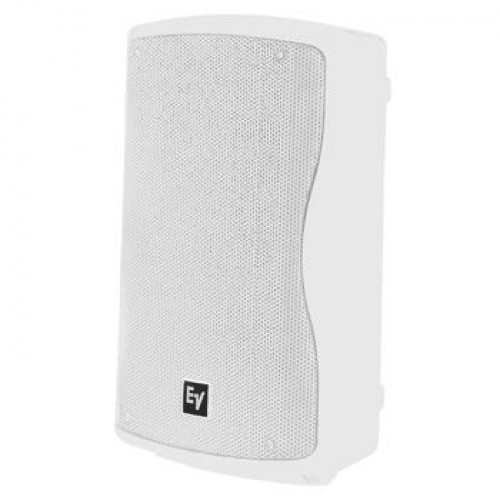

ZX1-90W
8-inch two-way full-range composite loudspeaker
Designed for top-notch quality with amazing versatility, the ZX/ZXA series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ZXA line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed highpower woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX/ZXA series represents the next level in advanced loudspeaker technology.
Features:
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
-
Chassis Size 203.2 mm (8") Color Black Input Connections Parallel Neutrik® NL4 Speaker Type Full-range, Mid-High, Two-Way, Wedges Frequency Response (-3 dB) 60 - 20000 Hz Frequency Response (-10 dB) 48 - 20000 Hz Internal Crossover Yes Recommended High-Pass Frequency 40 Hz Sensitivity 1 W/1 m 94 dB Max. SPL/1m (calc) 123 dB Coverage (Nominal -6 dB) H 90 ° Rotatable Coverage (Nominal -6 dB) V 50 ° Rotatable Rotatable Horn Yes System Power Handling (Continuous/Program/Peak) 200//800 Watts LF Transducer 8-inch EV8L HF Transducer 1.25-inch DH2005 Crossover Frequency 1700 Hz Nominal Impedance (Passive) 8 Ω Minimum Impedance 6 Ω Enclosure Material High Impact Polystyrene Flying No Outdoor No Grill Polyester Powder Coated, 18GA Galvanized Steel Height 457 mm (17.99") Width 282 mm (11.1") Depth 264 mm (10.39") Weight Net 8.4 kg (18.52 lbs)
