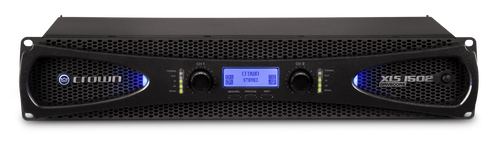

Crown XLS1502 DRIVECORE 2 SERIES

Product Description

Meet the new XLS DriveCore™ 2 Series

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Features:

Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
Higher DSP capabilities: More control; has band pass filter per channel
Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
Set sleep mode after specified time without having to press a button
Security setting disables menu buttons; menu locked/unlocked by entering combination
System reset allows factory settings to be restored
Remote power trigger
Peakx™ Limiters provide maximum output while protecting your speakers
XLR, 1/4", RCA inputs provide flexibility
Integrated PureBand™ Crossover System for better performance and control
Efficient forced-air fans prevent excessive thermal buildup

XLS DriveCore 2 Power Matrix

Specifications:

Sensitivity	1.4Vrms
Frequency Response	+0dB, -1dB
Signal to Noise	>103dB (at .775Vrms, 6dB lower)
Intermodulation Distortion	< 0.3%
Damping Factor	> 200
THD	< 0.5%
Crosstalk	At 1kHz: > 85dB, At 20kHz: > 55dB
Dimensions	19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm)
Weight	8.6 lbs (3.9 kgs)
