Product Description

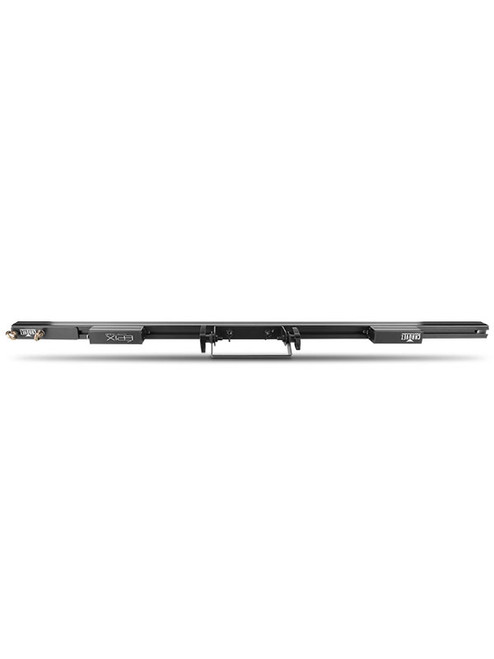

ÉPIX Strip Tour
Épix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125-degree viewing angle. Power and control it through the Épix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle to up to 180 degrees.
Features
AT A GLANCE
-
Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
-
Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
-
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
-
Increase viewing angle by using the optional dome accessory
-
ÉPIX Drive 900 required for operation
- Vip Driver
Specifications
OPTICAL
- Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
- Viewing Angle: 125°
- Viewing Angle (with optional dome accessory): 180°
- Illuminance (white frost filter installed): 1,094 NITS
- Illuminance (with optional dome accessory): 701 NITS
- Illuminance (black stealth filter installed): 267 NITS
- Pixels: 50 x 1
- Pixel Pitch: 20 mm
- Refresh Rate: 4,700 Hz
CONSTRUCTION / PHYSICAL
- Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
- Dimensions (with optional dome accessory): 39.37 x 5.31 x 1.18 in (1000 x 135 x 30 mm)
- Weight: 3.44 lb (1.56 kg)
- Weight (with optional dome accessory): 3.51 lb (1.59 kg)
- Exterior Color: Black
- Housing Material: Aluminum
CONNECTIONS
- Data Connectors: 4-pin XLR
- Physical Linking: 18 inline Epix Strip Tour
- Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
- Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
- Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
- Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
- Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
- Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
- Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
CONTROL
- Control Protocol: Art-Net, Kling-Net, sACN
- Control Channels: 150
ELECTRICAL
- Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
- Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
- Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
CABLE
- 4PXLREXT16IN
- 4PXLREXT5FT
- 4PXLREXT50FT
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- ÉPIX Strip Tour
- White Frost Filter
OPTIONAL ACCESSORIES
- ArKaos Media Master Express + KN software
- Clamps
- Dome accessory
- 4-pin XLR cables
REQUIRED ACCESSORIES
- ÉPIX Drive 900
- VIP Driver
