Product Description

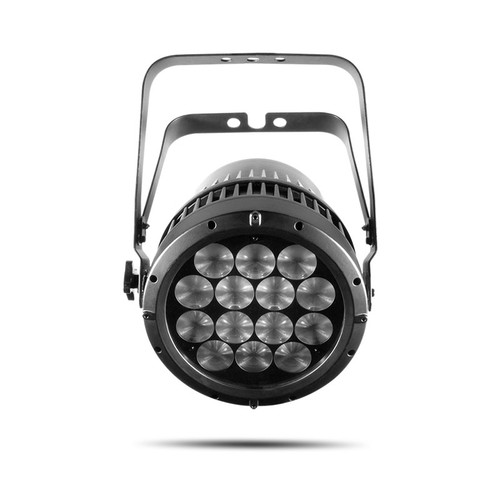

COLORado 2 Quad Zoom
COLORado 2-Quad Zoom IP is one of the brightest and most powerful wash lights in the COLORado IP family. The 14 quad-color LEDs and wide-range zoom of 11° to 43° give designers the color mixing and beam size flexibility to create both specific spot lighting and large area washes with the same fixture. The 16-bit dimming ensures beautiful fades and low-level lighting looks. COLORado 2-Quad Zoom IP has IP66 rated connections and hardware for extra endurance, making it an excellent choice for theater installs as well as touring, broadcast, and outdoor events.
Features
AT A GLANCE
-
RGBW color mixing via DMX or manually
-
Zoom control via DMX or manually
-
Color temperature presets 3200 to 10000 K
-
Built-in auto and custom programs recalled via DMX and Master/Slave
-
16-bit dimming of individual colors as well as master dimmer
-
Selectable, smooth dimming curves for programming versatility
-
Color macros with included speed adjustment
-
Double-bracketed yoke doubles as a floor stand
-
IP66-rated with M12 GORE valve for assured internal equalization
-
Edison to proprietary IP66 power cable, comes with the unit
-
5-pin DMX to proprietary IP66 data cable, comes with the unit
-
LED display with passcode protection
Specifications
OPTICAL
- Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 6° to 30°
- Field Angle: 11° to 43°
- Zoom Angle: 11° to 43°
- Illuminance (11°): 8,000 lux @ 5 m
- Illuminance (43°): 695 lux @ 5 m
- PWM Frequency: 1,200 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 5
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 11.1 x 9.3 x 13.8 in (283 x 236 x 348 mm)
- Weight: 18.2 lb (8.7 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Accessory Holder/Gel Frame Size: 9 in (229 mm)
CONNECTIONS
- Power Connection: Local plug to proprietary IP66 input power cord (1,651 mm)
- Power Input: Proprietary IP66
- Power Output: Proprietary IP66
- Data Connectors: Male and female 5-pin XLR DMX to proprietary IP66 adapters
CONTROL
- Control Protocol: DMX
- DMX Channels: 3, 4, 5, 6, 7, 12 or 17
- Modes/Personalities: 7 personalities (ARC1, ARC1D, ARC2, ARC2S, ARC2D, TOUR, HSV, TR16, STD.Y, AR2.Z)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
- Power and Current: 206 W, 1.80 A @ 120 V, 60 Hz
- Power and Current: 216 W, 1.02 A @ 208 V, 60 Hz
- Power and Current: 217 W, 0.94 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
WHAT'S INCLUDED
- COLORado 2-Quad Zoom IP
- Local plug to proprietary IP66 input power cord
- Male and female 5-pin XLR DMX to proprietary IP66 adapters
- Gel frame holder (9 in/229 mm accessories)
- Gel frame
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Power Extension Cable: IP5POWER
- Signal Extension Cable: IP5SIG
- Color Blending Filters: DF60X1D, DF20D
